Medium MFR PFA (6–15 g/10 min)

Medium MFR PFA (6–15 g/10 min) refers to PFA grades with an MFR of approximately 6–15 g/10 min. This range is useful when melt flow needs to be matched with a particular processing method, product geometry and finished-part requirements.

MFR is measured under a specified temperature and load, so the value should always be considered together with the manufacturer, grade and test method. Similar MFR values do not necessarily indicate equivalent mechanical, purity, electrical or processing performance.

Nianjing supports PFA resin sourcing by manufacturer, grade, MFR range, processing method, application and quantity. TDS, SDS, COA and other available technical documents can be provided when a specific grade is being evaluated.

MFR Range and Processing Behavior

MFR describes the flow of molten resin under a defined test condition. A value within the 6–15 g/10 min range may be suitable for applications requiring controlled melt flow, while some thin-wall or high-flow designs may call for a different grade.

For injection molding, flow length, wall thickness, gate design and machine capability affect cavity filling. During extrusion, die geometry, screw configuration, line speed, wall thickness and cooling conditions influence dimensional stability and output. The same nominal MFR can therefore behave differently when the equipment or product design changes.

A higher MFR is not automatically better. The appropriate level is determined by the relationship between the resin grade, processing route and finished product.

Properties That May Affect Grade Choice

Beyond MFR, the relevant technical data may include tensile strength, elongation, creep, flex life and stress-crack resistance. These properties become more important where a component is exposed to repeated movement, mechanical loading or long-term chemical contact.

Chemical compatibility should also be assessed against the actual medium, concentration, temperature, exposure period and mechanical conditions rather than from a general PFA designation alone.

Daikin describes its NEOFLON PFA AP series with a broad temperature capability of approximately −200°C to 260°C. This is a product-family reference; the applicable service conditions for an individual grade should be confirmed from its current technical documentation.

Technical Data for Grade Comparison

When comparing PFA grades, MFR is only one part of the specification. A practical comparison can include:

For a specific material, the current manufacturer's TDS should take priority over generic PFA data. MFR values should also be compared only when the test temperature and load are equivalent.

Processing and Grade Examples

Grades in this flow range may be used in several melt-processing routes, but the appropriate choice depends on product geometry, equipment and the required balance of flow and other material properties.

Injection molding

Suitable grades can be considered for fittings, valve components, connectors and other molded parts where the processing characteristics match the design. Wall thickness, flow length, gate configuration, mold conditions and machine capability all influence the result.

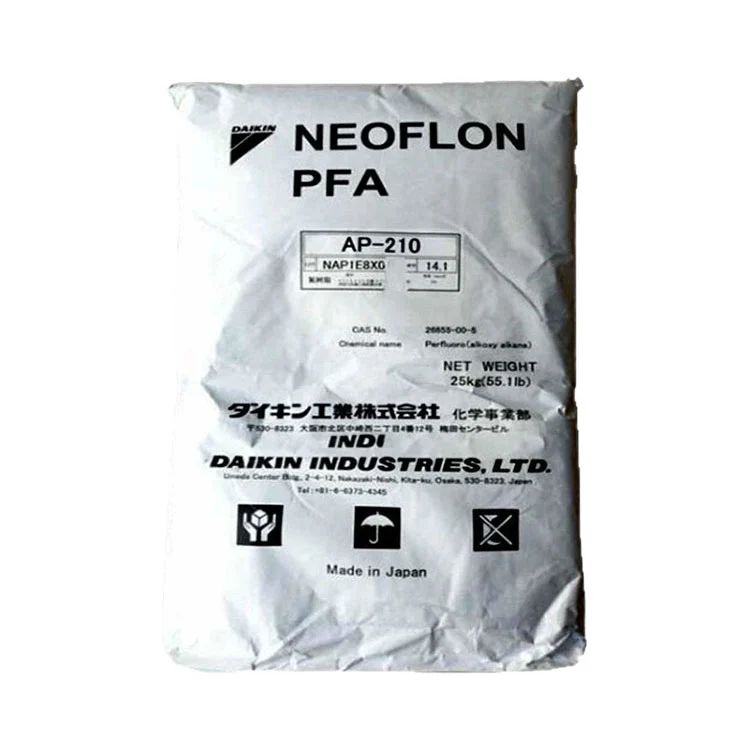

Daikin NEOFLON PFA AP-210 provides a documented grade example. Its TDS lists an MFR of 14 g/10 min under ASTM D3307 and identifies the material for injection and extrusion molding. The same document reports a melting point of 306°C, tensile strength of 31 MPa and elongation of 420% as representative values for AP-210. These figures describe that specific grade and should not be treated as general values for all PFA grades in this range.

Extrusion

PFA grades are used in applications such as tubing, profiles and wire or cable components. Die design, screw configuration, melt temperature, line speed, wall thickness and cooling conditions all influence extrusion stability and final dimensions.

Transfer and compression molding

Some grades can also be processed by transfer or compression molding. Heating cycles, pressure, mold design and cooling conditions vary by grade and equipment, so the manufacturer's processing recommendations should be used when setting production parameters.

Manufacturer Grade References

Manufacturer data provides useful reference points when evaluating flow behavior.

Daikin NEOFLON PFA AP-210 is listed at 14 g/10 min under ASTM D3307 for injection and extrusion molding.

Solvay's archived Hyflon PFA data lists M640 at 10–17 g/10 min when measured at 372°C under a 5 kg load. Because the test conditions differ from the AP-210 reference, the two MFR values should not be treated as directly equivalent. Availability of historical Hyflon grades should also be confirmed before procurement.

These examples are technical reference points rather than direct substitutes.

Where These Grades May Be Used

The MFR range itself does not define the application. Product construction, service conditions and the complete grade specification remain more important.

Fluid handling

PFA is used for tubing, fittings, valves and related components in chemical and high-purity fluid systems. Depending on the application, specifications may include chemical compatibility, operating temperature, pressure, dimensional stability and cleanliness.

For semiconductor-related equipment, purity is a separate selection criterion. Daikin identifies high-purity SH grades for components such as fittings, pump components, wafer baskets, filter housings, pipes and valves. A PFA grade should therefore not be considered semiconductor-grade solely because its MFR falls within a particular range.

Electrical and cable components

PFA can be used for wire insulation, cable components and selected electrical parts. Dielectric properties, flexibility, operating temperature and cable construction need to be matched with the finished product and applicable specifications.

Chemical-processing components

Applications may include selected linings, seals, fittings and valves exposed to chemical media. The chemical type, concentration, temperature, exposure duration and mechanical loading should be reviewed when selecting the material.

Molded parts

Fittings, connectors, valve components and other molded parts can use suitable PFA grades. For complex or thin-wall designs, cavity geometry and processing conditions can have a significant effect on filling and dimensional results.

Sourcing Information to Confirm

For an existing material, the manufacturer's name, grade number and current TDS provide the most reliable starting point. Medium MFR PFA (6–15 g/10 min) should not be sourced by MFR alone because grades with similar flow values can differ in mechanical properties, purity, electrical characteristics and processing behavior.

For a new requirement, the following information can help establish an appropriate material specification:

For an existing grade, Nianjing can work from the manufacturer's reference and current technical documentation. For a new specification, sourcing can be matched to the required MFR, processing method, application, quantity and documentation requirements.

FAQ

What does 6–15 g/10 min mean for PFA?

It describes the MFR range used for this product category. The test temperature and load are needed to make a meaningful comparison between grades.

Can grades with similar MFR be substituted for one another?

Not necessarily. Similar flow values do not confirm equivalent mechanical, purity, electrical or processing characteristics. The complete technical specification should be reviewed before substitution, followed by production trials where necessary.

Which processing methods can be used?

Depending on the grade, PFA in this range may be processed by injection molding, extrusion, transfer molding or compression molding. The product design and equipment determine which route is appropriate.

Is a higher MFR better for injection molding?

Not in every case. Higher MFR generally indicates greater flow under the same test conditions, but the required level depends on wall thickness, flow length, gate design, mold conditions and the intended part.

Is this MFR range suitable for semiconductor applications?

MFR alone does not establish semiconductor suitability. High-purity applications may require additional specifications covering extractables, ionic contamination, particles and other cleanliness characteristics. The manufacturer's grade documentation should be used for confirmation.
