When manufacturers need consistent paste-extrusion performance for tubing, wire insulation, sealing tapes, or other fluoropolymer products, Nianjing supplies PTFE Dispersion Resin with grade and application matching support. Understanding reduction ratio, product dimensions, processing conditions, and material documentation is essential for selecting the right resin.

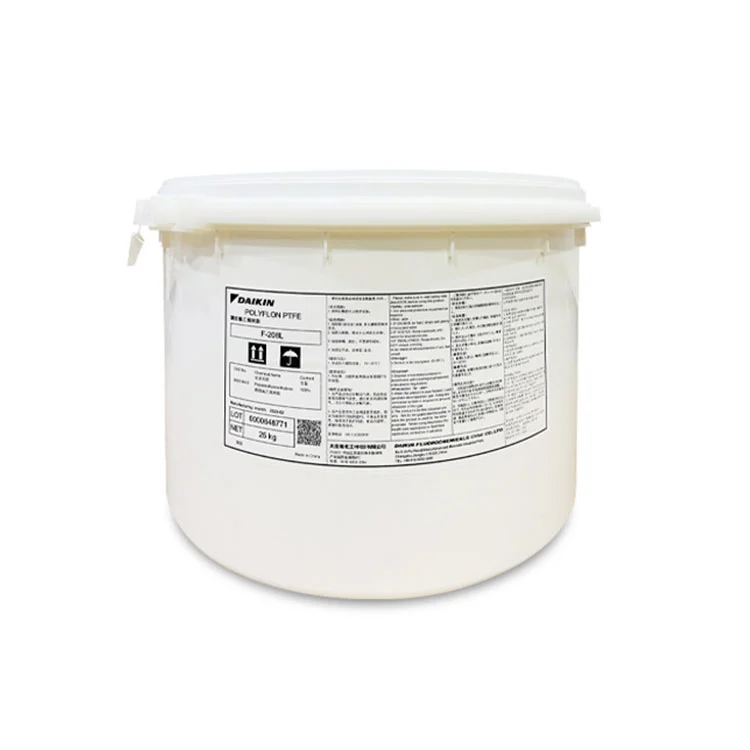

PTFE Dispersion Resin is a fine-powder polytetrafluoroethylene material primarily designed for paste extrusion and specialized forming processes. Unlike conventional melt-processable plastics, PTFE develops fibrillation under appropriate shear conditions, allowing manufacturers to produce continuous structures with excellent chemical resistance, electrical insulation, low friction, and thermal stability. This guide explains how PTFE dispersion grades work, where they are used, how to select a suitable grade, which technical parameters matter, and what procurement information should be confirmed before production.
Table of Contents
- What Is PTFE Dispersion Resin?
- Why Does Grade Selection Matter?
- What Technical Properties Should Buyers Check?
- Where Is PTFE Dispersion Resin Used?
- How Is PTFE Dispersion Resin Processed?
- How Should Manufacturers Select the Right Grade?
- What Should Be Confirmed Before Procurement?
- Frequently Asked Questions
What Is PTFE Dispersion Resin?
PTFE Dispersion Resin is a fine PTFE powder developed primarily for paste-extrusion processing. PTFE is different from conventional thermoplastics because it does not normally flow as a conventional melt during standard injection molding or ordinary melt extrusion. Instead, suitable dispersion grades can develop fibrillation during controlled processing, enabling manufacturers to create continuous structures.
According to the product information provided by Nianjing, the material is commonly prepared with an appropriate extrusion aid before being preformed and extruded through a die. The processing aid is subsequently removed before sintering. The final properties depend not only on the resin grade but also on paste preparation, extrusion conditions, product geometry, and thermal processing.
This makes grade selection a process-specific decision rather than simply a matter of choosing a generic PTFE material. A grade suitable for thin-wall tubing may not deliver the same processing behavior required for another product geometry.
Why Does Grade Selection Matter?
Different PTFE paste-extrusion applications place different demands on the resin. Product diameter, wall thickness, extrusion equipment, die design, reduction ratio, mechanical requirements, and electrical specifications can all affect material selection.
For example, fine-diameter tubing requires controlled extrusion behavior and dimensional consistency. Wire insulation may additionally require specific electrical performance. Sealing tapes can require a different balance of flexibility, tensile strength, density, and dimensional stability.
| Selection Factor | Why It Matters | Typical Consideration |
|---|---|---|
| Product Dimensions | Influences extrusion requirements | Diameter, wall thickness, profile |
| Reduction Ratio | Helps match resin to paste-extrusion geometry | Fine or thin-wall products may require specific ranges |
| SSG | Provides a reference for comparing grades | Should be evaluated with other technical data |
| Tensile Strength & Elongation | Relates to finished-product mechanical performance | Important for flexible or mechanically stressed products |
| Processing Equipment | Affects extrusion behavior | Die configuration, extrusion conditions |
| Electrical Requirements | Important for electrical insulation applications | Wire and cable specifications |
| Purity Requirements | Relevant to controlled applications | Electrical, filtration, and contamination-sensitive products |
What Technical Properties Should Buyers Check?
A reliable material evaluation should be based on the manufacturer's current Technical Data Sheet (TDS), and where available, batch-specific documentation such as a Certificate of Analysis (COA). ASTM D4441 provides a specification framework for aqueous PTFE dispersions, while paste-extrusion PTFE resin selection requires attention to additional grade-specific processing characteristics. :contentReference[oaicite:0]{index=0}
Reduction Ratio
Reduction Ratio, commonly abbreviated as RR, is an important parameter when selecting paste-extrusion grades. It provides a reference for matching resin behavior with the required extrusion geometry. However, a higher RR should not automatically be considered better. The appropriate range depends on the product, die design, equipment, and processing conditions.
Standard Specific Gravity
Standard Specific Gravity, or SSG, is commonly used as a reference when comparing PTFE grades. It can support material comparison, but it should not be treated as the only criterion for determining whether a resin is suitable for a particular application.
Mechanical Properties
Tensile strength and elongation become particularly relevant when the finished PTFE product will experience pulling, bending, pressure, vibration, or repeated movement. The applicable values should always be confirmed using the current grade-specific TDS.
Processing Characteristics
Particle characteristics, paste preparation behavior, extrusion pressure, processing window, and sintering conditions can influence production stability. For this reason, material selection should be considered together with the manufacturer's processing recommendations.
Where Is PTFE Dispersion Resin Used?
The combination of chemical resistance, electrical insulation, low friction, and high-temperature performance makes PTFE useful across demanding industrial applications. The specific grade should always be matched to the manufacturing process and final-product requirements.
Wire and Cable Insulation
PTFE is widely associated with demanding insulation applications because of its electrical and temperature-resistant characteristics. For fine or thin-wall wire insulation, the conductor diameter, insulation thickness, extrusion equipment, dimensional requirements, and electrical specifications should all be considered during grade selection.
PTFE Tubes and Small-Diameter Tubing
Paste extrusion enables manufacturers to produce continuous PTFE tubing and profiles. For small-diameter tubing, dimensional control becomes especially important. Resin grade, reduction ratio, die geometry, extrusion conditions, and wall thickness should therefore be evaluated as an integrated system.
Sealing Tapes and Materials
Selected PTFE grades can be processed into tapes and sealing products used in chemical, mechanical, and fluid-handling environments. Depending on the application, manufacturers may need to evaluate density, flexibility, tensile performance, dimensional stability, and forming behavior.
Porous and Microporous Structures
Some PTFE materials can be processed into porous structures and membranes through controlled stretching and related methods. For filtration applications, resin selection is only one part of the specification. Porosity, pore-size distribution, permeability, tensile properties, and final membrane structure should also be defined.
How Is PTFE Dispersion Resin Processed?
PTFE paste extrusion is a specialized process rather than conventional thermoplastic melt processing. A typical manufacturing sequence can be summarized as:
- Grade selection: Match the resin to the product dimensions and required processing range.
- Extrusion-aid mixing: Combine the resin with a suitable processing aid according to the grade's recommendations.
- Paste preparation: Prepare the material under controlled conditions.
- Preforming: Form the paste before extrusion.
- Paste extrusion: Force the prepared paste through the selected die.
- Extrusion-aid removal: Remove the processing aid using the appropriate process.
- Sintering: Apply a controlled thermal profile to develop the final PTFE structure.
- Final inspection: Verify dimensions and application-specific properties.
Processing conditions can vary considerably between grades and applications. Mixing ratio, paste preparation, aging, extrusion pressure, die design, and sintering profile should therefore follow the relevant manufacturer's technical recommendations.
How Should Manufacturers Select the Right Grade?
A practical selection process starts with the finished product rather than the resin name alone. Manufacturers should define the product's physical dimensions, production process, performance targets, and documentation requirements before comparing available grades.
- Define the final product type and dimensions.
- Identify the paste-extrusion equipment and die configuration.
- Determine the required Reduction Ratio range.
- Review SSG and relevant mechanical properties.
- Confirm electrical requirements for wire and cable applications.
- Establish purity or contamination-control requirements when applicable.
- Compare the current manufacturer's TDS and processing recommendations.
- Conduct a production trial when introducing a new or replacement grade.
A production trial can help verify extrusion pressure, surface appearance, dimensional stability, and finished-product performance before full-scale adoption. This is particularly useful when replacing an established grade with an alternative source.
What Should Be Confirmed Before Procurement?
For industrial purchasing, a clear material specification can significantly reduce the risk of receiving an unsuitable grade. Nianjing's product information recommends a sourcing structure based on manufacturer, grade, product type, Reduction Ratio, product dimensions, processing method, critical properties, required documentation, and quantity.
| Procurement Information | Recommended Details |
|---|---|
| Manufacturer / Grade | Existing or requested manufacturer and exact grade number |
| Application | Tubing, wire insulation, tape, membrane, sealing product, etc. |
| Dimensions | Diameter, wall thickness, insulation thickness, or profile |
| Processing Method | Paste extrusion and relevant equipment information |
| Technical Targets | RR, SSG, tensile strength, elongation, electrical properties |
| Documentation | TDS, SDS, COA where available, specifications and applicable declarations |
| Quantity | Trial quantity or regular production requirement |
For replacement projects, the existing manufacturer's name, grade number, and current TDS are particularly useful starting points. This information allows a supplier to compare the actual technical requirement rather than relying only on the general PTFE designation.
Quality documentation should also be considered carefully. Nianjing identifies documents such as the Technical Data Sheet (TDS), Safety Data Sheet (SDS), Certificate of Analysis (COA) where available, product specifications, processing recommendations, and applicable regulatory declarations as useful procurement materials. Suitability for specialized applications should always be confirmed for the exact grade and end use.
Frequently Asked Questions
What is PTFE Dispersion Resin mainly used for?
It is mainly used in paste extrusion and specialized PTFE forming processes for products such as PTFE tubing, thin-wall tubes, wire and cable insulation, tapes, sealing materials, and selected porous structures.
What is the difference between PTFE dispersion and suspension grades?
The primary difference is processing behavior. Dispersion grades are designed to develop fibrillation during paste extrusion, while suspension grades are generally associated with compression molding, ram extrusion, and related forming processes.
What does Reduction Ratio mean in PTFE paste extrusion?
Reduction Ratio is a processing parameter used to relate a paste-extrusion resin grade to the required extrusion geometry. It is particularly relevant when manufacturing fine-diameter or thin-wall products.
Is a higher Reduction Ratio always better?
No. The suitable Reduction Ratio depends on product dimensions, die design, extrusion equipment, and processing conditions. The resin should be selected according to the actual production requirement rather than simply choosing the highest available value.
Can PTFE dispersion resin be injection molded?
It is not normally processed through standard injection molding because PTFE does not behave like a conventional melt-processable thermoplastic. Paste extrusion and other specialized PTFE forming technologies are more commonly used.
What information should I provide when sourcing PTFE resin?
For a new project, provide the product type, dimensions, processing method, target RR or extrusion requirements, critical mechanical or electrical properties, documentation requirements, and quantity. For a replacement project, the existing manufacturer, grade number, and current TDS are especially valuable.
Choose the Right Material for Your PTFE Production Requirements
Selecting a PTFE material should begin with the finished-product requirements, not simply a generic material description. With the right grade, processing data, technical documentation, and application information, manufacturers can establish a more predictable route from resin selection to stable paste extrusion and finished-product performance. If you are looking for a PTFE Dispersion Resin supplier for a new project, replacement grade, or specific production requirement, contact us with your manufacturer, grade, application, dimensions, quantity, and technical requirements. Nianjing can review the specifications and help identify suitable sourcing options for your application.
